Die casting press idra for aluminium - Johannesburg
Monday, 09 July 2018Item details
City:
Johannesburg, Gauteng
Offer type:
Sell
Item description
MAKE Idra
MODEL OL 220 PRP
YEAR 1995

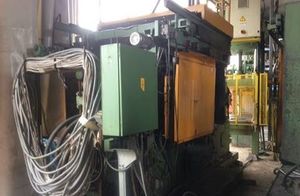

Horizontal cold chamber aluminum die casting machine with STP Loader included
Datasheet
Locking force 2450 KN
Max injection force 285 KN
Extraction force 180 KN
Max height molds 550 mm
Minimum height molds 180 mm
Moving plate size 500mm
Central ejection stroke 100 mm
Plane dimensions 765x765 mm
Clearance between tie bars 500x500 mm
Motor power 22 Kw
Total weight 10.2 Ton
Overall dimensions 1592x5320x2293 h mm
MODEL OL 220 PRP
YEAR 1995
Horizontal cold chamber aluminum die casting machine with STP Loader included
Datasheet
Locking force 2450 KN
Max injection force 285 KN
Extraction force 180 KN
Max height molds 550 mm
Minimum height molds 180 mm
Moving plate size 500mm
Central ejection stroke 100 mm
Plane dimensions 765x765 mm
Clearance between tie bars 500x500 mm
Motor power 22 Kw
Total weight 10.2 Ton
Overall dimensions 1592x5320x2293 h mm
