Aluminium die casting press italpresse - Johannesburg

Monday, 9 July 2018

Item details

City: Johannesburg, Gauteng
Offer type: Sell

Contacts

Contact name Remarketingmachine
Phone +39 030 725026

Item description

MAKE Italpresse
MODEL AL300
YEAR 1974

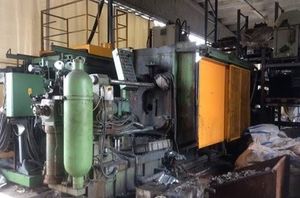

Horizontal cold chamber aluminum die casting machine Italpresse with Loader and Lubricator
Datasheet
Locking force 350 Ton
Max injection force 40 Ton
Extraction force 18 Ton
Max height molds 750 mm
Minimum height molds 250 mm;
Moving plate size 500mm
Central ejection stroke 130 mm
Plane dimensions 960x960 mm
Clearance between tie bars 580x580 mm
Motor power 18.5 Kw
Area max cm2 845
Pressure on the metal Kg/cm2 400
Total weight 14.8 Ton
Overall dimensions 1450x6100x1900 h mm
