KALTENBACH KDM712 + KBS750 Drilling and Sawing Line - Johannesburg
Saturday, 01 January 2022
Item details
City:
Johannesburg, Gauteng
Offer type:
Sell
Price:
R 495,000
Item description

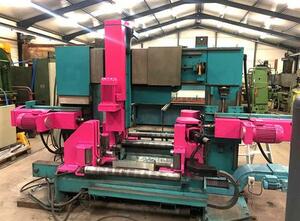

KALTENBACH profile drilling machine, type KDM 712
Programmable automatic drilling
Spindle speed per spindle and spindle type
Same feed speed per steel type
Automatic tool changer: 12 positions (6 L + 6 R)
Automatic air-oil cooling
Automatic profile and drilling length measurement: M120P
Automatic chip removal
Chip collection box
Capacity:
Corner line steel: Min. 50 x 50 x 5 mm, Max. 250 x 250 x 28 mm
U-profile: Min. 50 x 24 x 5 mm, Max. 400 x 110 x 14 mm
HE-profile: Min. 80 x 46 mm, Max. 705 x 350 mm
Welded flange: Max. 705 x 520 mm
Stroke of vertical clamping is standard 0 - 350 mm, Stroke of 170 - 520 mm is also possible
Drilling unit (vertical/horizontal rotation):
Drilling diameter: 10 - 40 mm
Spindle speed: 200 - 2000 Rpm
Rapid progress / Rapid return: 30.000 mm/min
Drill feed: 400 mm/min
Rapid traverse positioning: 30.000 mm/min
Rotation speed (0-180°): 1,5 sec.
Driving power:
Drill drive motor: 7.5 kW (option 11 kW)
2x positioning drives (each 7.5 kW)
Hydraulic aggregate: 4 kW
Electric connection:
Working voltage: 400/50 V/Hz
Connection phases: 3 + 0 + Earth, fuse: 63A
Connection capacity maximum: 32 kVA
Nominal connection capacity: 26 kVA/50A
Dimensions:
Working height: 640 mm
Transport dimensions: 3200 x 1750 x 2700 mm
Weight: approx. 5100 kg
KALTENBACH bandsaw, type KBS 750 DG
Full automatic sawing cycle
Laser guide
Automatic scrap/residue separator
Metal saw band: M42
Driving power:
Saw motor frequency controlled: 5,5 kW
Hydraulic power unit: 1,5 kW
Chip brush frequency controlled: 0,18 kW
Capacity:
Cutting speed on control desk infinitely adjustable: 15 - 100 m/min
Saw band feed on saw frame infinitely adjustable: 0 - 300 mm/min
Rapid traverse of the saw band: 2500 mm/min
Software:
Latest software and computer installed in 2019
Air consumtion:
Compressed air connection to be provided: 6-8 bar
Air consumption at 6 bar: 60 I/min
Electric connection:
Working voltage: 400/50V/Hz
Connection phases: 3 + 0 + Earth, DC - direct current 24V
Dimensions:
Working height from floor surface: 640 mm
Transport dimensions: 3250 x 12000 x 2500 mm
Weight: approx. 3900 kg
Extra:
Machine is already dismantled (professionally)
Machine can be installed by mechanic who performed disassembly (costs on request)
loading into container (costs on request)
Programmable automatic drilling
Spindle speed per spindle and spindle type
Same feed speed per steel type
Automatic tool changer: 12 positions (6 L + 6 R)
Automatic air-oil cooling
Automatic profile and drilling length measurement: M120P
Automatic chip removal
Chip collection box
Capacity:
Corner line steel: Min. 50 x 50 x 5 mm, Max. 250 x 250 x 28 mm
U-profile: Min. 50 x 24 x 5 mm, Max. 400 x 110 x 14 mm
HE-profile: Min. 80 x 46 mm, Max. 705 x 350 mm
Welded flange: Max. 705 x 520 mm
Stroke of vertical clamping is standard 0 - 350 mm, Stroke of 170 - 520 mm is also possible
Drilling unit (vertical/horizontal rotation):
Drilling diameter: 10 - 40 mm
Spindle speed: 200 - 2000 Rpm
Rapid progress / Rapid return: 30.000 mm/min
Drill feed: 400 mm/min
Rapid traverse positioning: 30.000 mm/min
Rotation speed (0-180°): 1,5 sec.
Driving power:
Drill drive motor: 7.5 kW (option 11 kW)
2x positioning drives (each 7.5 kW)
Hydraulic aggregate: 4 kW
Electric connection:
Working voltage: 400/50 V/Hz
Connection phases: 3 + 0 + Earth, fuse: 63A
Connection capacity maximum: 32 kVA
Nominal connection capacity: 26 kVA/50A
Dimensions:
Working height: 640 mm
Transport dimensions: 3200 x 1750 x 2700 mm
Weight: approx. 5100 kg
KALTENBACH bandsaw, type KBS 750 DG
Full automatic sawing cycle
Laser guide
Automatic scrap/residue separator
Metal saw band: M42
Driving power:
Saw motor frequency controlled: 5,5 kW
Hydraulic power unit: 1,5 kW
Chip brush frequency controlled: 0,18 kW
Capacity:
Cutting speed on control desk infinitely adjustable: 15 - 100 m/min
Saw band feed on saw frame infinitely adjustable: 0 - 300 mm/min
Rapid traverse of the saw band: 2500 mm/min
Software:
Latest software and computer installed in 2019
Air consumtion:
Compressed air connection to be provided: 6-8 bar
Air consumption at 6 bar: 60 I/min
Electric connection:
Working voltage: 400/50V/Hz
Connection phases: 3 + 0 + Earth, DC - direct current 24V
Dimensions:
Working height from floor surface: 640 mm
Transport dimensions: 3250 x 12000 x 2500 mm
Weight: approx. 3900 kg
Extra:
Machine is already dismantled (professionally)
Machine can be installed by mechanic who performed disassembly (costs on request)
loading into container (costs on request)
